The portable flow meter is mainly used for measuring gravity flow unloading of diesel, gasoline.

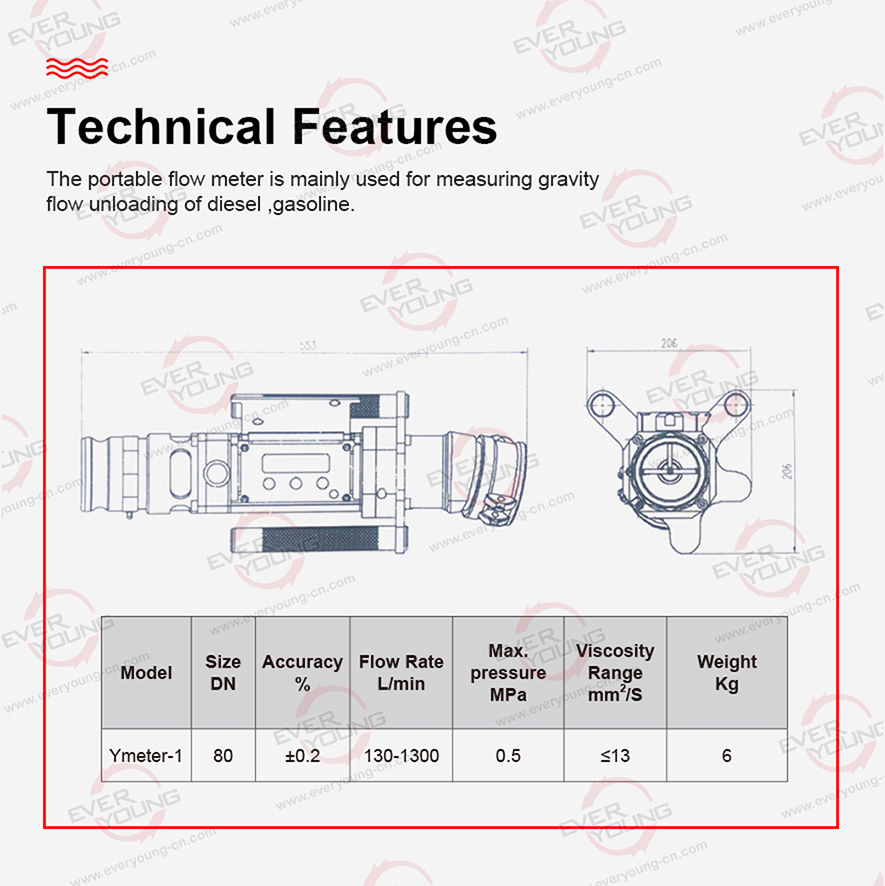

Technical Features:
• Accuracy: ±0.2%
• Flow Rate: 130-1300L/Min
• Max pressure: 0.5Mpa
• Viscosity Range: ≤13 mm^2/S
• Product weight: 6 kgs
The portable flow meter is mainly used for measuring gravity flow unloading of diesel, gasoline.
Technical Features:
• Accuracy: ±0.2%
• Flow Rate: 130-1300L/Min
• Max pressure: 0.5Mpa
• Viscosity Range: ≤13 mm^2/S
• Product weight: 6 kgs

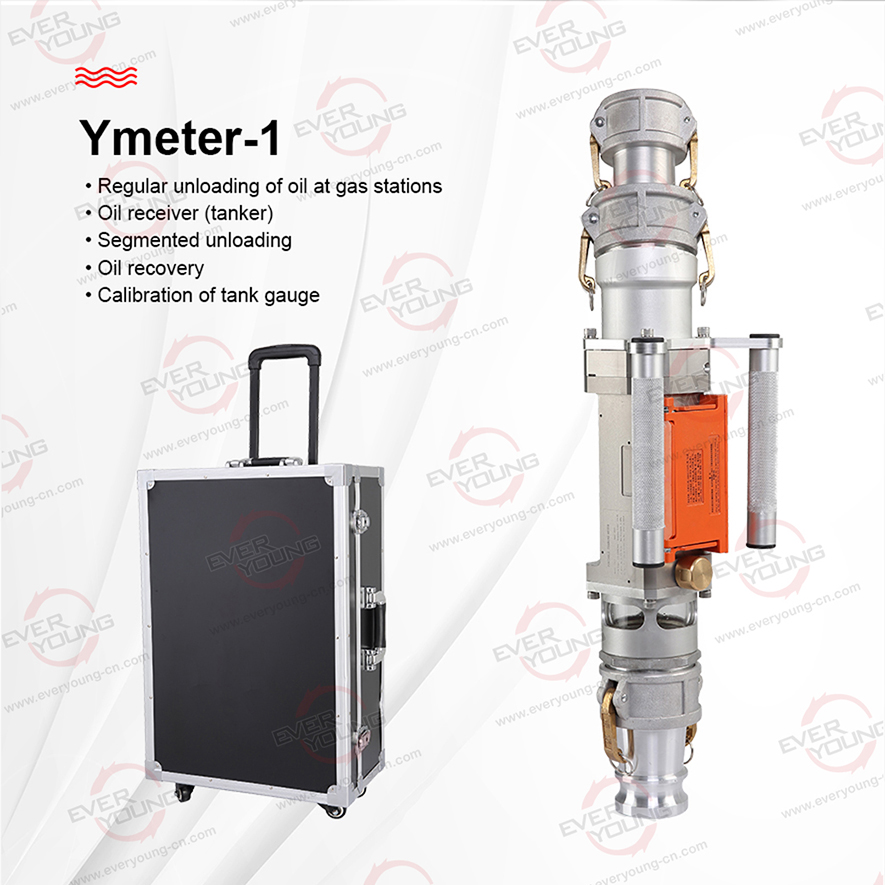

The type flow meter can be applied to:
• Regular unloading of oil at gas stations
• Oil receiver (tanker)
• Segmented unloading
• Oil recovery
• Calibration of tank gauge
• Portable flow meter interface specification
• Inlet interface: 3 inch quick connector Negative end (DN80)
• Oil outlet interface: 3 inch quick connector (DN80)
Data Communication
• Portable flow meter can be equipped with data collector to upload data to computer through USB data cable.
• The metering parameters and configuration files of the portable flow meter can be uploaded separately to facilitate the testing of the equi pment (periodic inspection, inspection and diagnosis)
• Display - Metering module (UNI) manages unloading metering related operations and fault maintenance. UNI module operating temperature range: -25°C to 55°C.
User Menu
The display metering module has no switch and the display is always on. Reset is required before starting the new test.
Save and reset the last measurement data and display the current data. Each button should last 3 seconds.
