  • DIAPHRAGM PUMP YPUMP-DP3312/3324

DIAPHRAGM PUMP YPUMP-DP3312/3324

0086 133 0661 7111 Contact Us
  • Description
  • Additional Information
  • Contact Us

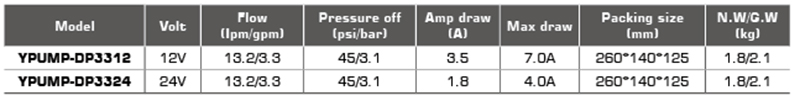

  • Functions:
     Motor Voltage: 12/24V DC
    • Max Flow rate: 13.2lpm (3..3gpm), can be adjusted from 3.0-13.2lpm (0.8-3.3gpm) as required.
    • Max Pressure: 60psi (4.2bar), can be adjusted from 10psi (0.6bar) to 60psi (4.2bar) as required.
    • SFS51-01inlet strainer for your choice. Inlet/Outlet fitting: 13mm pyramid hose barb, 1/2 NPT thread fitting for your choice.
    • Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered control you can choose pump without pressure protection.
    • Duty Cycle: Intermittent (under different pressure the continuous working  time will also be different)
