EspañaEach fluid has specific properties in terms of viscosity, pressure, temperature, corrosion, cleanness, consistency… AdBlue® is a chemical fluid that requires specific materials and construction features.
Keeping the AdBlue® pure and free from impurities and contamination is a key topic in the refilling operations. To obtain this result, it is strategic the usage of equipment specifically designed for the fluid and made with compatible materials: this is true not only for transfer systems, such as pumps, but also for metering systems; such as counters.

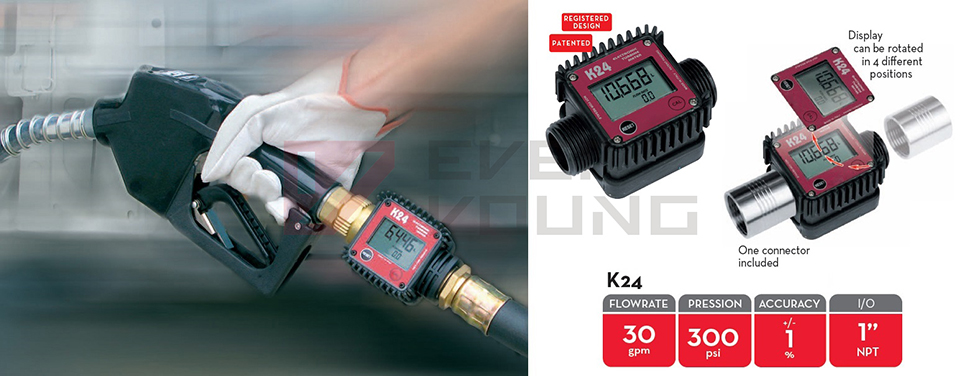

K24 is Digital turbine meters for low viscosity fluids. Easy to install, in line or at the end of a delivery pipe, equipped with adjusting screen for easy reading.
The ideal instrument for controlling fluid dispensing. Sturdy casing and a sealed electronic card make it suitable for use in practically all conditions.
Reinforced polyamide body.
Polypropylene turbine.
Function And Specification
(1) Optional unit of measurement L, GAL, PT, QT, M3
(2) Pulse measurement
Measurement of pulse by reed switch . It can shows once -run data, total data, maximum pressure and flow range.
For once-run data: Maximum is 99999
Decimal: Flow less than 99.999, shows three decimal places;
Flow between 99.999 and 999.99, shows two decimal places;
Flow between 999.99 and 9999.9, shows one decimal place; Flow over 9999.9, no decimal.
Maximum pressure cannot over 150 psi, flow range is 5 - 40GPM.
(3) Error adjustment of indication factor
Range of error adjustment factor is 1 to 9999 e.g.: Factor of diesel is 620.
(4) Auto off
This product will auto off if 30s not have any work.
By any key pressing or pulse input, the product will enter working state immediately.
